CMM Manager – Universal Software for any 3D CMM

CMM-Manager by QxSoft is a task-oriented, highly intuitive, plug-n-play, 3D metrology software package. Available for vision, manual, portable, and CNC coordinate measuring machines / CMM. Avoid costly hardware retrofits and connect directly to the existing equipment. The fully integrated environment features:



  • Walk-up / quick-measure
  • One-click CAD-measure
  • Virtual simulation
  • Real-time verification
  • Automatic path planning
  • Collision-free CAD-teach
  • CAD alignment
  • Iterative datum alignment
  • Vision measurement tools
  • Multi-channel lighting control



Object oriented interface allows easy program creation without complex text based programming language. CMM-Manager also offers flexible yet easy-to-use functionalities, including graphical probe configuration management, automatic tip calibration, cross section scanning and group feature measurement. Simplify the metrology tasks through intuitive yet powerful software available for any CMM, portable arm, or measuring microscope.



VIDEO       BROCHURE

Category:

SUPPORTED PROBES



  • Renishaw PH9 / PH10 / PH50
  • Renishaw PH20
  • Renishaw RTP20
  • Renishaw TP2, TP20, TP200
  • Renishaw SP25
  • Renishaw PH1, PH6, MH8, etc
  • TESAStar – M8 & TKJ
  • zCat
  • Zeiss ST & RDS







BENEFITS & FEATURES

PLUG’N PLAY CMM SOFTWARE FOR MANUAL, DCC AND PORTABLE CMM TOUCH TRIGGER MEASUREMENTS

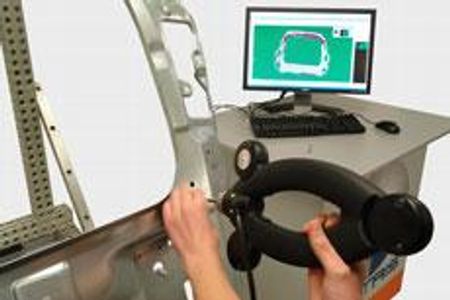

CMM-manager supports tactile measurements using both manual and CNC CMMs as well as portable CMMs, such as an articulated arm and a K-CMM optical CMM. It is a highly intuitive and easy-to-use metrology software for inspection tasks at the shop floor covering a wide range of measurement volumes.







QUICK WALK-IN-MEASUREMENT

Simply walk up to the CMM, quickly align the part, and immediately measure geometric features and points on planes. When CAD is available, you can even pick features from 3D model to eliminate manually probing the work piece.





TRUE CLICK-AND-MEASURE CAPABILITY

Using CMM-Manager’s true click-and-measure capability, the operator simply picks any feature from 3D CAD model. The software automatically selects the proper probing angles and generates a collision-free path. After confirming the selection, the CMM automatically measures the feature.





CAD-BASED GRAPHIC PROGRAMMING

The operator can quickly create inspection programs directly from the CAD model, using graphical programming tools available in CMM-Manager. These part programs can be easily modified and visually simulated to verify program execution.





CROSS SECTION & FREEFORM SURFACE SCANNING

 In CMM-Manager, it is easy to define a cutting plane for cross section scanning or to pick a freeform surface for digitization.











AUTOMATIC COLLISION AVOIDANCE

CMM-Manager intelligently modifies probe motion to avoid any obstacles along the path once a probe collision is detected. As this is done automatically, it guarantees a completely collision-free inspection path.





POWERFUL DATUM ALIGNMENT TOOL

The powerful datum alignment tool of CMM-Manager aligns a part to designated datum points. This soft fixturing function eliminates the need of dedicated hard fixtures and helps reduce expenditure of hard fixture fabrication and maintenance.







AUDIO / VISUAL GUIDANCE

With this new feature, the user can set up a tolerance zone and CMM-Manager will change audio tone and color depending whether the probe is inside or outside the specified tolerance zone when the watch window is open.





AUTOMATIC PROBE RECOGNITION

CMM-Manager automatically recognizes the probe that is used, saving inspection preparation time and avoiding flaws in measurement results.









PH20 SUPPORTS TRIPLES CMM PRODUCTIVITY

PH20 probe head support in CMM-Manager for Windows 7 drives fast, infinite, rotary positioning for high-speed point measurement with minimum CMM movement. The probe head brings five-axis inspection capability to smaller CMMs by optimizing the working volume of the measurement platform, increasing touch-trigger CMM inspection throughput up to three times.





BEST-FIT ANALYSIS FOR IMPROVED INSPECTION ACCURACY

CMM-Manager has a built-in best-fit analysis engine to compare measurement data with the CAD model. This powerful best-fit function eliminates the influence of misalignment and cosine errors in tolerance evaluation to achieve the best inspection accuracy.







DRAG-AND-DROP WEB-READY GRAPHICAL REPORTING

Drag-and-drop functions incorporated into CMM-Manager speed up graphic reporting. To instantly create a graphics report table, for example, the operator simply drags the appropriate item from the report database tree to the graphics report window. The software automatically generates inspection reports that serve as digital communication tools, graphically highlighting critical dimensions and point deviations.
